Boosting Hybrid PCS Performance with SiC Devices

Hybrid PCS, or hybrid power conversion systems, are now common in energy storage and EV charging. They link batteries, solar panels, and the power grid. To work well, a hybrid PCS must be fast, efficient, and reliable.
This is where silicon carbide (SiC) devices make a big difference.

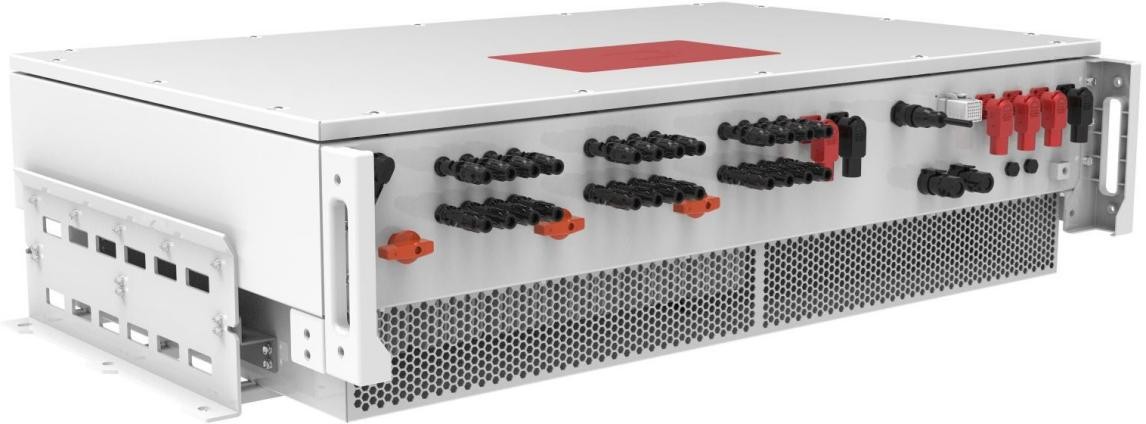

What Is a Hybrid PCS?

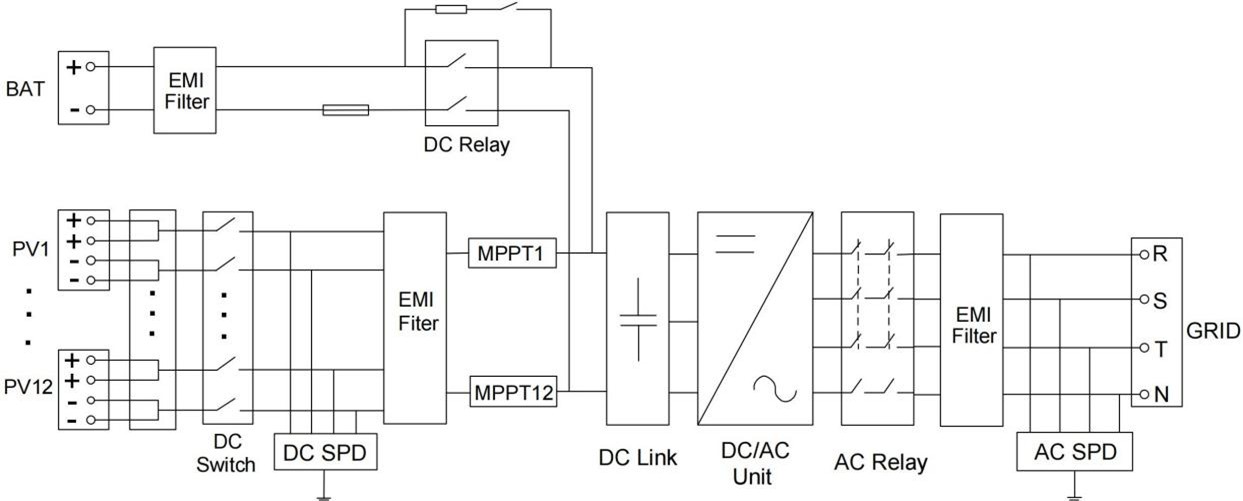

A hybrid PCS can manage both AC and DC power. It can charge batteries, send power to the grid, and take power from renewable sources.
Because it does many jobs, it must handle high voltage and high power at the same time.

Traditional silicon devices can limit performance. They create more heat and waste more energy. This reduces system life and efficiency.

Why Silicon Carbide Matters

Silicon carbide is a wide bandgap material. It works better than silicon in high-power systems.
SiC devices can switch faster and handle higher voltage.

Key benefits of SiC devices include:

• Lower switching loss

• Higher power density

• Better thermal performance

These features are very helpful in hybrid PCS designs.

Higher Efficiency and Lower Loss

In a hybrid PCS, energy loss means higher cost. SiC devices reduce both switching loss and conduction loss.
This helps the system reach higher efficiency, even at high load.

With higher efficiency:

• Less energy is wasted

• Operating cost is lower

• Overall system performance improves

Smaller Size and Higher Power Density

SiC devices can work at higher switching frequency. This allows designers to use smaller inductors and capacitors.
As a result, the hybrid PCS becomes smaller and lighter.

A compact system is easier to install. It also saves space in energy cabinets and charging stations.

Better Thermal Performance

Heat is a big challenge in power systems. SiC devices can operate at higher temperatures than silicon devices.
They also create less heat during operation.

This means:

• Smaller cooling systems

• Longer component life

• Higher system reliability

Longer System Lifetime

Hybrid PCS systems often run 24/7. Reliability is very important.
Because SiC devices run cooler and with less stress, they help extend system lifetime.

This is critical for energy storage and fast charging projects.

Conclusion

Using SiC devices is a smart way to boost hybrid PCS performance.
Silicon carbide improves efficiency, reduces size, and increases reliability.

As power systems demand more speed and power, SiC will become a key technology in hybrid PCS design.
